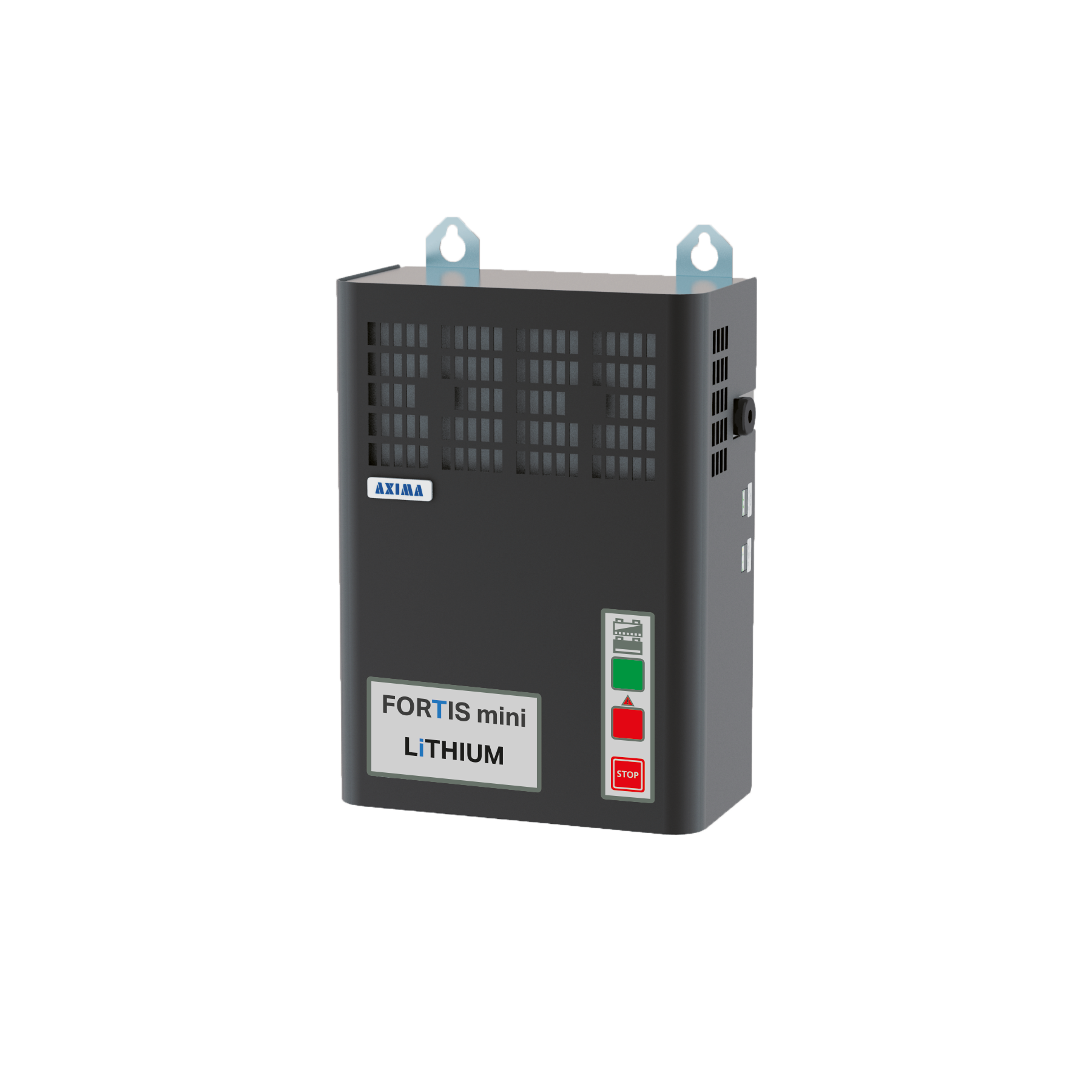

Fortis mini Lithium
Fortis mini Lithium is a compact high-frequency charger with robust construction. Perfect for charging smaller lithium batteries that are not equipped with a BMS. Sophisticated pre-set charging curves ensure correct charging of accumulators of various types of handling and other devices with a capacity of up to 400 Ah.
- Charger meets the requirements of continuous operation in various industrial areas
- Suitable for charging most types of lithium batteries
- Easy setting of battery capacity and charging curve with one button
- LED signaling of the charging phase
- User-friendly controls
Product description
| Type | Fortis mini Lithium 40 |
| Battery capacity range | 40 – 400 Ah |
| Input current | 5,9 A |
| Output voltage | 24 V DC |
| Output current | 40 A |

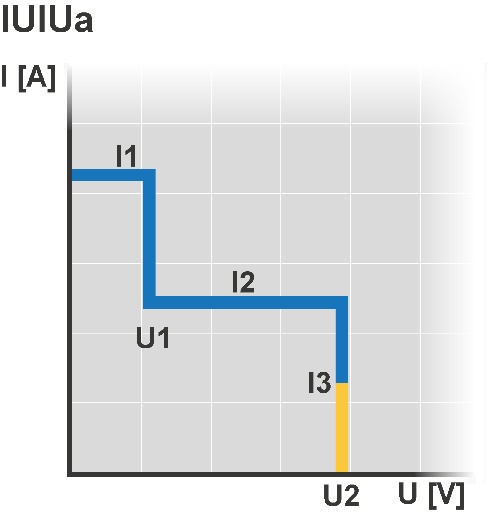

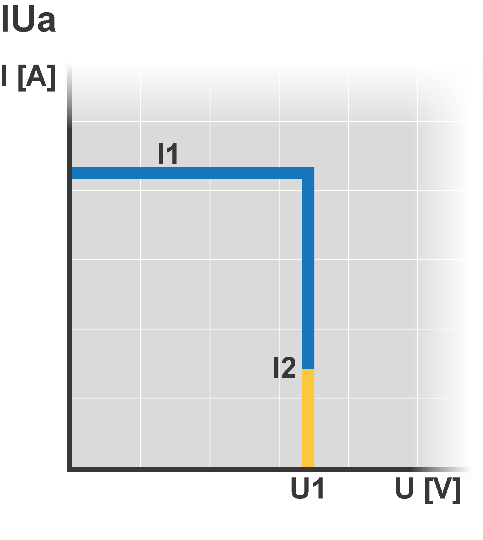

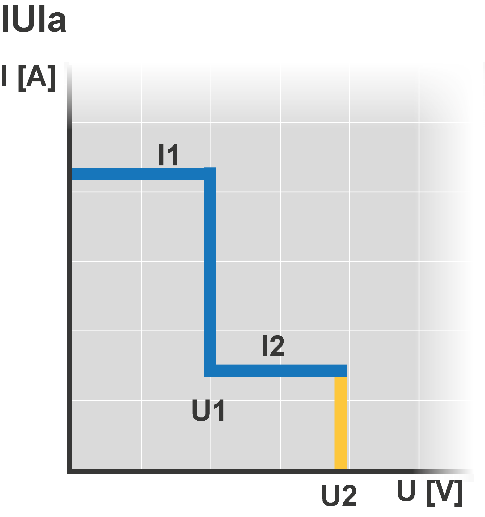

Charging characteristics:
| INPUT | FORTIS mini Lithium 24E40 |
| Input voltage range | 1f 230 V, ± 15%, 50/60 Hz |
| Input current | 5,9 A |
| Inrush current | < Inom |
| Recommended circuit breaker type C | 10 A |
| Power factor | 0,99 |
| OUTPUT | FORTIS mini Lithium 24E40 |
| Nominal output voltage | 24 V |
| Maximal output current | 40 A |
| Output voltage tolerance | ±1 % |
| Output current tolerance | ±2 % |
| Efficiency | up to 94% |
| SAFETY, STANDARDS | |
| Safety (LVD) | EN 62368-1 |
| EMC resistance | EN 61000-6-2 |
| EMC emissions | EN 61000-6-4 |
| Degree of protection | IP20 |
| STORAGE, WORKING ENVIRONMENT | |
| storage | in dry areas -25°C to +80°C, max. relative humidity 80% |
| working environment | -10°C to +40°C, max. humidity 80%, non-condensing |

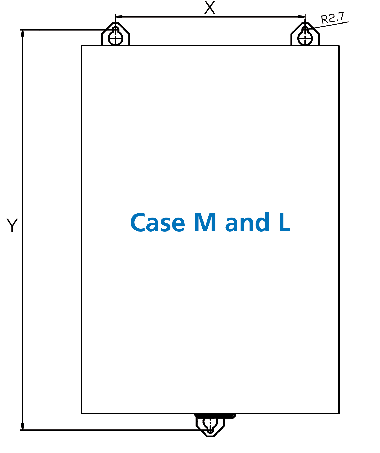

Rozměry (mm):
| Type | Case | Height | Width | Depth | X | Y | Weight |
| Fortis mini Lithium 40 | M | 234 | 174 | 90 | 120 | 268 | 4 kg |
