FLEXIS P

Type

Output voltage
Output current
Input current

Product description

The FLEXIS P high-frequency charger with IP54 protection is designed for dusty rooms, damp areas and is also suitable for outdoor use. FLEXIS P is used in mines, railway applications, steel mills, metallurgical plants and other areas where environmental influences need to be dealt with.

The charger case is designed for hanging on a wall or can be equipped with a stand. Cooling is provided by fans at the top of the charger. The intake and exhaust openings are equipped with splash and dust resistant filters. All features and parameters are identical to the FLEXIS charger.

  • ARB charging curve for automatic recognition ang charging a battery
  • Special charging curve for the lithium batteries
  • Opportunity charging - way of the charging battery during a rest time
  • Case with IP54 protection degree resistant to splashing water and dust
  • Possibility of the air-conditioned cabinet - for use at high temperatures
  • Possibility of the stainless steel charger case
  • For all battery types - charge curve selection
  • For different capacities - setting the charge current
  • For batteries from 2 up to 110V - adjustable via panel or configuration software
  • Flexible modular system - easy service
  • Setting parameters on the front panel of the charger or from a PC
  • Memory for charging cycles, detailed information on the last charging cycle
  • Operating temperatures from -10ºC to + 40ºC, with air-conditioned case from -30ºC to + 60ºC
  • Regenerative battery care - desulfation (removal of sulphates from the battery by low current charging for long periods of time) and equalization (charging to balance voltage and electrolyte density of individual battery cells)
  • Maintenance charging (full capacity of unused battery)

Specification

Efficiency :
up to 95%
Output voltage stability :
+-1%
Cooling :
active fans
Degree of protection :
IP54
Operating temperature :
-10°C to +40°C
Safety class :
1
Standards :
EN 61000-6-2, EN 61000-6-4, EN 60950-1

Dimensions

Case Width Height Depth X Y
S 380 600 210 340 620

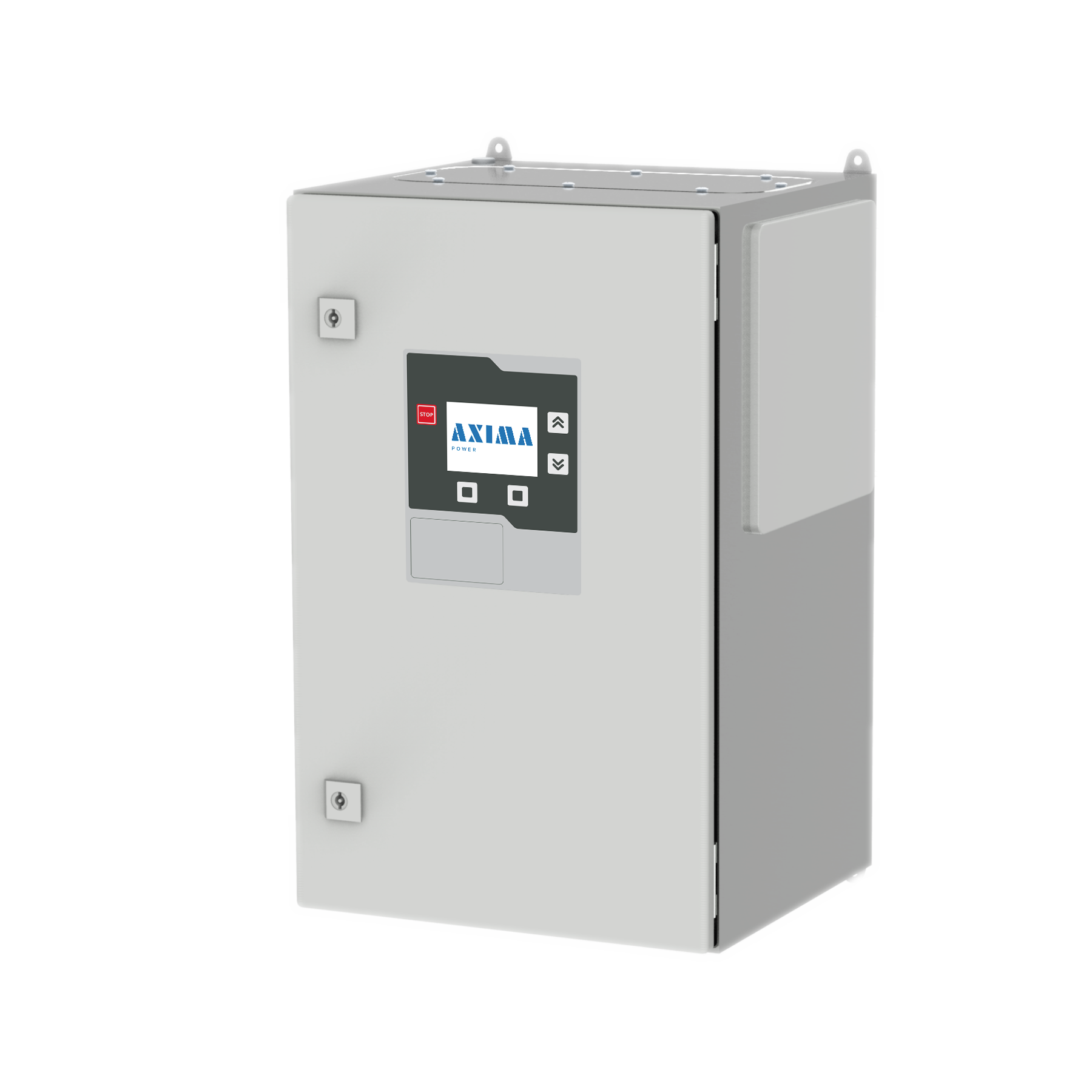

M 380 600 350 340 620

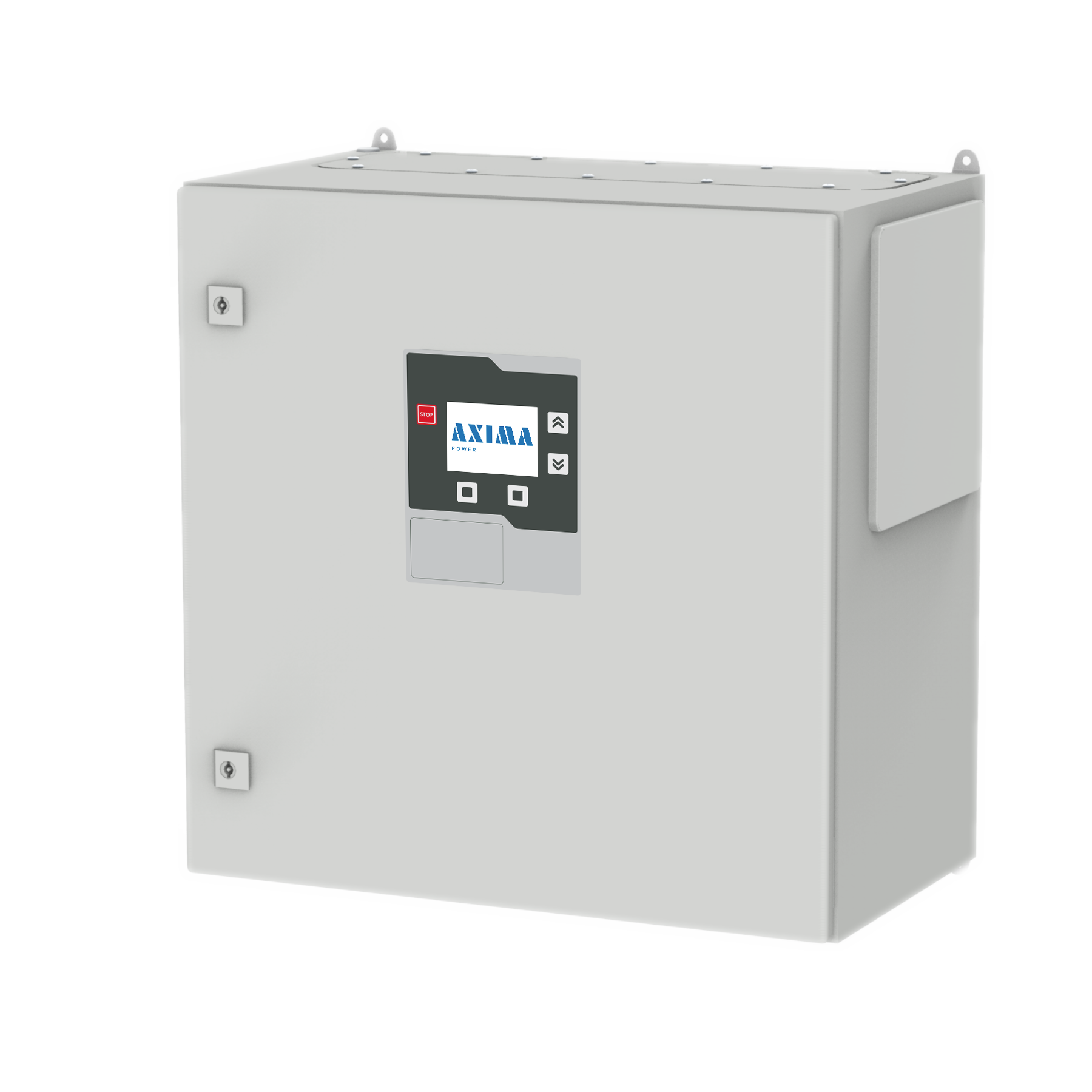

L 600 600 350 560 620
Pokud tabulku nevidíte celou, mužete s ní pohybovat doleva/doprava
Dimensions in milimetres [mm] X and Y are positions of mounting holes
IP54_dimensions_EN
