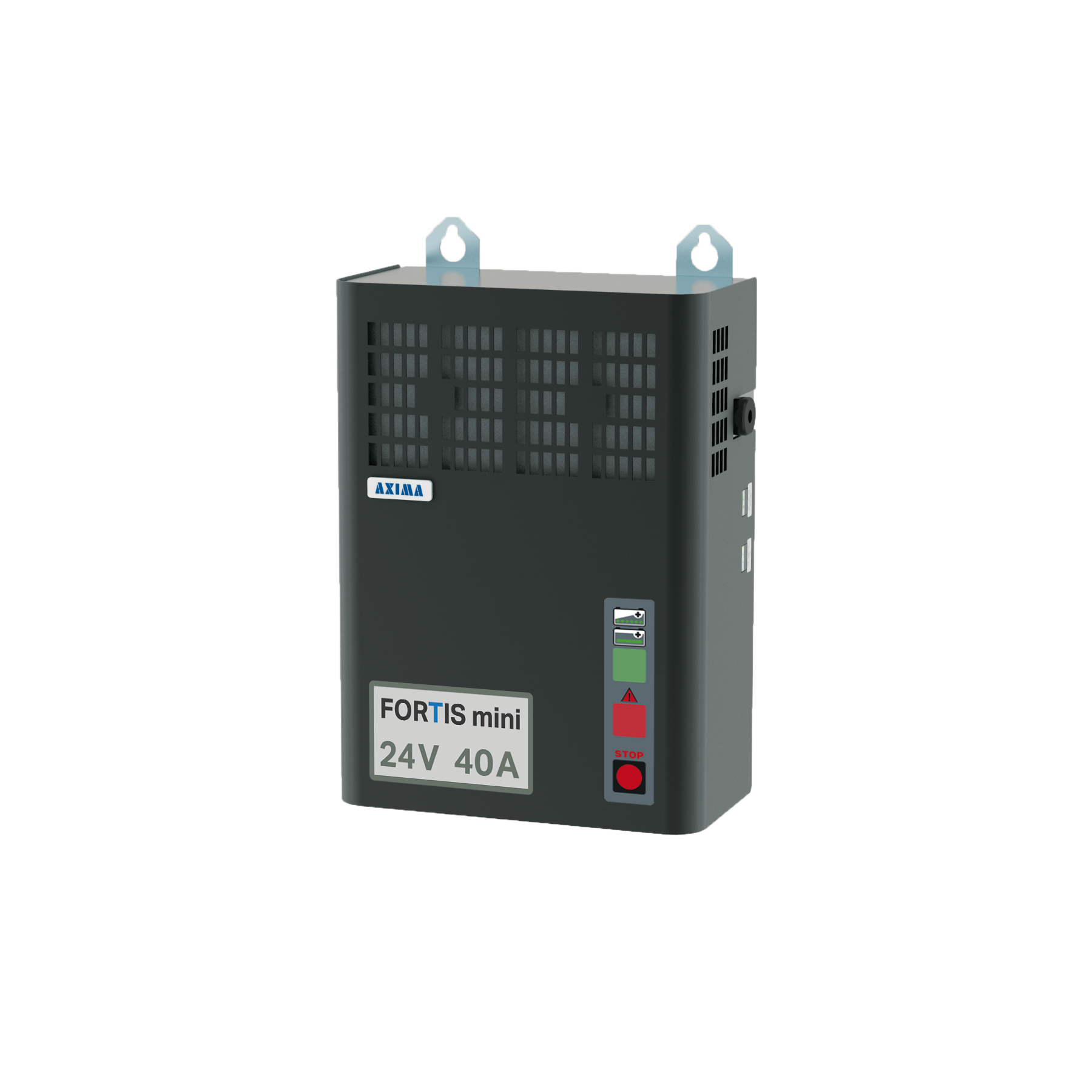

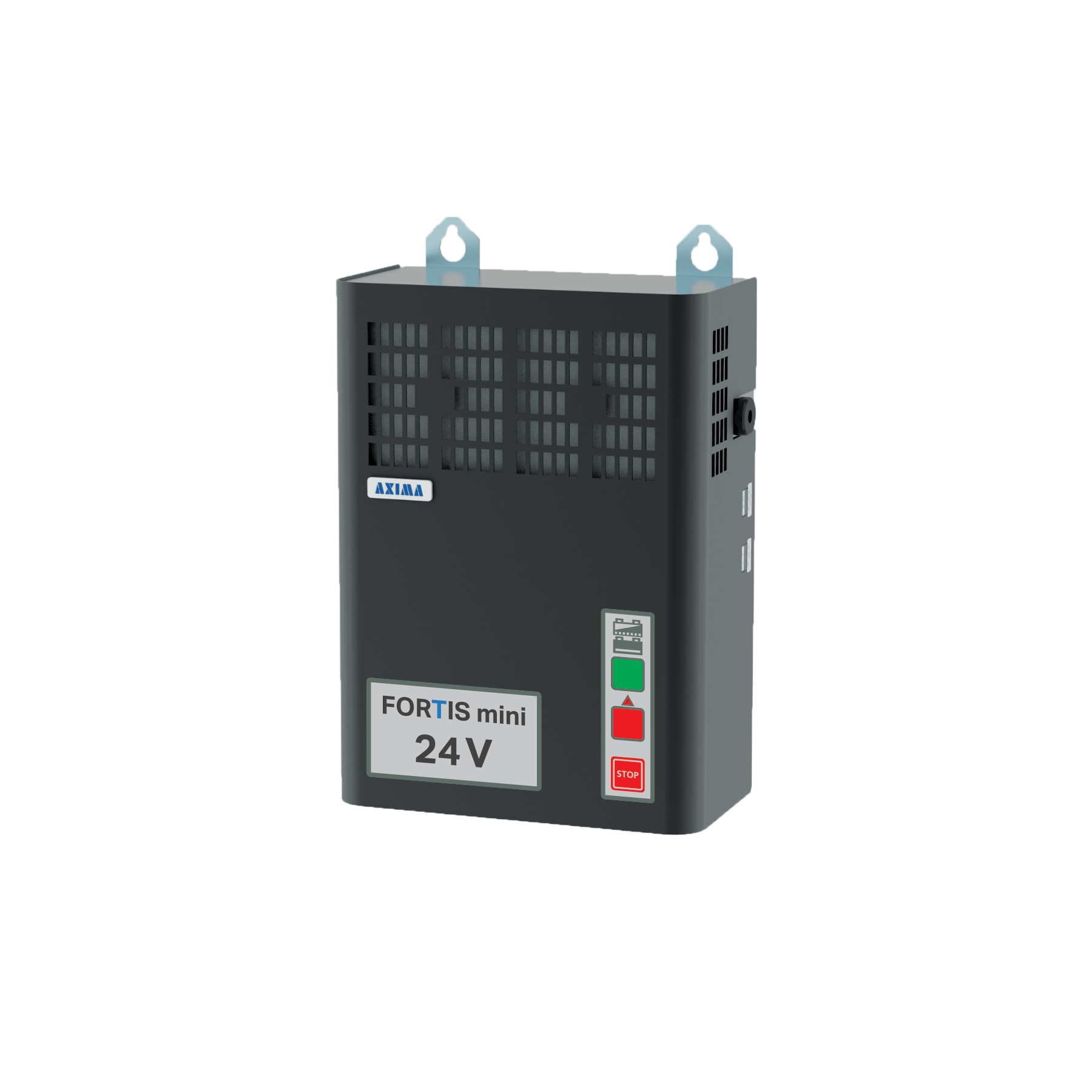

FORTIS mini

Type

Output voltage
Output current
Input current

Product description

Features:

  • 12V and 24V versions
  • For a battery with capacity from 65Ah to 620Ah
  • Charging time from 7 to 12 hours for standard batteries, from 8 to 14 hours for gel batteries
  • Easy adjustment of battery capacity and charging curve with one button
  • Charging phase LED indication

Fortis mini chargers are designed for charging traction batteries used in electric forklifts or handling and cleaning technology. They are suitable for charging lead-acid batteries with both liquid electrolyte and gel or AGM batteries.

FORTIS mini charges batteries with rated voltage of 12V or 24V (depending on the type), the nominal charging current is  20A - 30A - 40A - 50A - 60A. The charger allows the user to adjust the charging current by selecting the battery capacity. The main charge current is limited to 20A per 100Ah of the selected capacity or reaches the maximum charger current. The charger is designed for cyclical charging of traction batteries, it can be operated continuously. Cooling is provided by fans inside the charger.

FORTIS mini chargers use inverters with high-frequency switching via MOSFET. Charging is controlled by a microprocessor control system. Important charging states are indicated by LEDs on the front pannel. According to the size, the chargers are built into three types of cabinets - S, M and L.



Specification

Efficiency :
up to 95%
Output voltage stability :
+-1%
Cooling :
active fans
Air pump :
Degree of protection :
IP20
Operating temperature :
-10°C to +40°C
Safety class :
1
Standards :
EN 61000-6-2, EN 61000-6-4, EN 62368-1

Dimensions

Case Width Height Depth X Y
S_mini 155 202 80 0 236
M_mini 174 234 90 120 268
L_mini 267 349 92 180 380
Pokud tabulku nevidíte celou, mužete s ní pohybovat doleva/doprava
Dimensions in milimetres [mm] X and Y are positions of mounting holes
mini_rozmery_EN

Accessories

AXI FF LFS RAMI R/G
Extension set for compact chargers Contains: External light signalisation red / green Drive-off…
Detailed specification
