FORTIS

Type

Output voltage
Output current
Input current

Product description

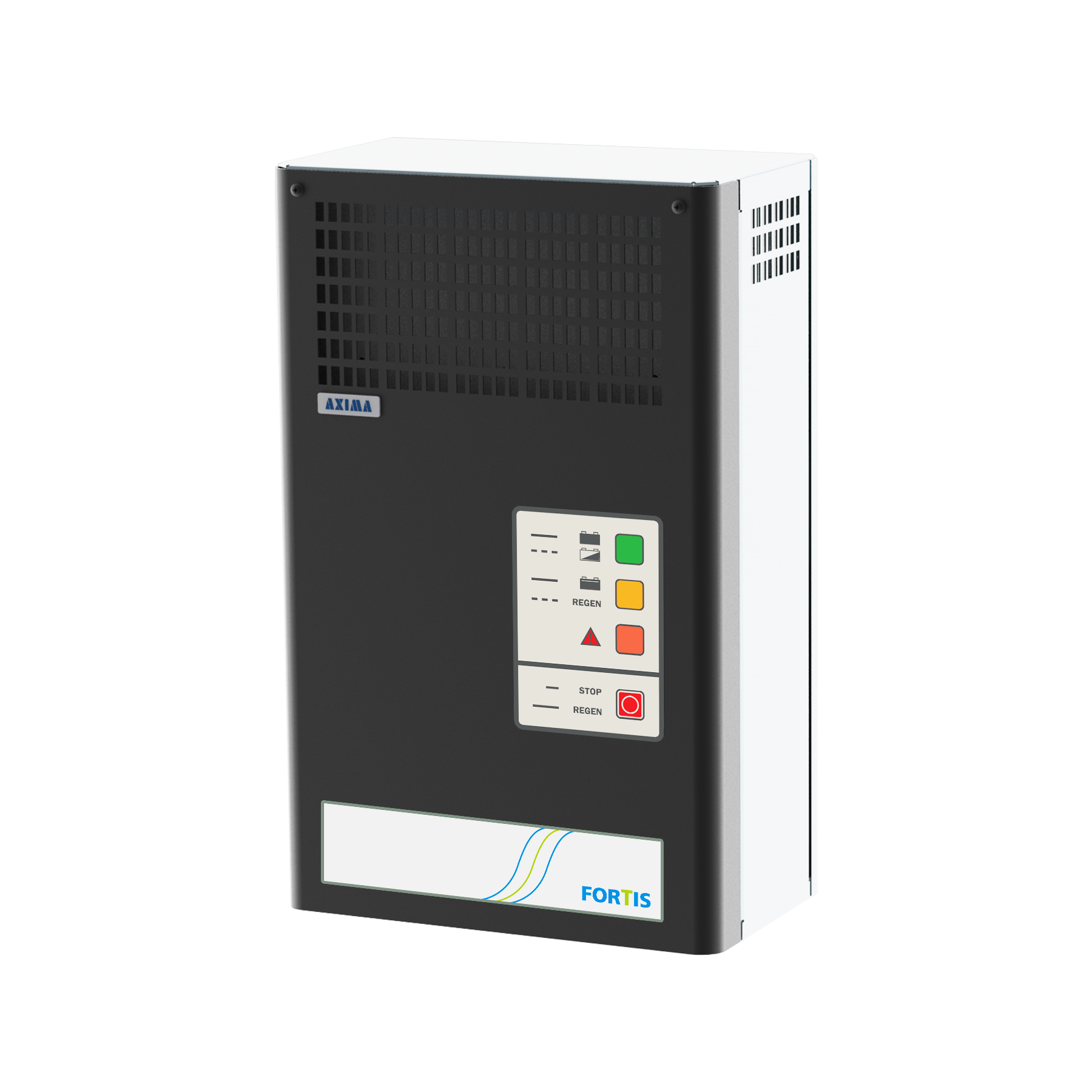

FORTIS chargers are designed for industrial use, mainly for charging of traction deep-cycle batteries (Lead-acid, GEL, LiFePo4,...) for electric vehicles. Chargers are intended for charging of batteries with Unom 12V-96V and current from 25-225A. (Chargers of other power on request). Chargers are modular construction, consist of control unit and power module(s) (input 1ph 230VDC or 3ph 400VDC). Important operating data are displayed on display during the charging. At FORTIS chargers could be set charging curve and battery capacity.

Operational stages are signaled by three LED lights on the front panel, the status of charging is visible from long distance. Output current is adjustable to battery capacity, operating stages are signalized by free LED lights. FORTIS chargers comply with European standards of using PFC at electronic devices.

  • User friendly
  • Saves expenses for operating
  • Very high reliability
  • Efficiency up to 95%, power factor cos φ ~1
  • Active PFC and soft-start
  • Verification of connected battery
  • High resistance to mains disturbances
  • Galvanic separated mains - output
  • Regeneration charging – desulphation and equalization
  • Galvanic separated mains - output
  • Modular system

Specification

Efficiency :
up to 95%
Output voltage stability :
+-1%
Cooling :
active fans
Degree of protection :
IP20
Operating temperature :
-10°C to +40°C
Safety class :
1
Standards :
EN 61000-6-2, EN 61000-6-4, EN 60950-1

Dimensions

Case Width Height Depth X Y
FF170 302 477 169 230 515
FF250 302 477 254 230 515
FF330 302 477 339 230 515
FF550 547 477 339 499 515
FF720 717 477 339 669 515
Pokud tabulku nevidíte celou, mužete s ní pohybovat doleva/doprava
Dimensions in milimetres [mm] X and Y are positions of mounting holes
case_dimensions

Accessories

FORTIS CPU MAX
The advanced version of the FORTIS control system that allows the use of accessories.
Detailed specification
AXI FF STARTSTOP
External START and STOP buttons.
Detailed specification
AXI FF RAMI R/G
External signalization for on-board mounting.  red / green
Detailed specification
AXI FF SEN20DM
Senzor pro měření teploty baterie s kabelem délky 2,0m.
Detailed specification
AXI FF SEN37DM
Senzor pro měření teploty baterie s kabelem délky 3,7m.
Detailed specification
AXI FF 3LED
Modular signaling column WERMA with three parts, green, yellow and red. Optical signaling located on the top of the…
Detailed specification
AXI FF 2LED
Modular signaling column WERMA with two parts, green and red. Optical signaling located on the top of the charger…
Detailed specification
AXI FF CAGE
Stand with wheels for easy handling. Particularly suitable for service chargers.
Detailed specification
AXI FF 720 ROBUST
High stand for hanging the charger.
Detailed specification
AXI FF 550 ROBUST
High stand for hanging the charger.
Detailed specification
AXI FF 330 ROBUST
High stand for hanging the charger.
Detailed specification
AXI FF MONO300
AXI FF MONO300 stand for chargers. It is used with FF330, FF550 and FF720 cases.
Detailed specification
AXI FF MONO200
AXI FF MONO 200 stand for chargers. It is used with FF170 and FF250 cases.
Detailed specification
AXI FF 1LED
Modular signaling column WERMA with one part, green. Optical signaling located on the top of the charger provides a…
Detailed specification
