FLEXIS

Type

Output voltage
Output current
Input current

Product description

FLEXIS chargers are designed for industrial use, mainly for charging of traction deep-cycle batteries (Lead-acid, GEL, LiFePo4, Lithium) for electric vehicles. Chargers are intended for charging of batteries with Unom 12V-96V and current from 25A. (Chargers of other power on request). Chargers are modular construction, consist of control unit and power module(s) (input 1ph 230VAC, 3ph 400VAC or 3ph 480VAC). Important operating data are displayed on display during the charging. Chargers are fully programmable, parameters of single charging cycles are saved in charging archive.

FLEXIS is fully programmable, high-frequency charger of traction batteries. Optimized charging technology prolongs working life of the battery, accelerates charging and saves energy. FLEXIS charger meets the hard requirements of three-shift service in industrial areas.

  • ARB charging curve for automatic recognition ang charging a battery
  • Special charging curve for the lithium batteries
  • Opportunity charging - way of the charging battery during a rest time
  • User-friendly – a setting of parameters via operating panel or PC
  • Efficiency up to 95%, power factor cos φ ~1
  • Active PFC and soft-start
  • Verification of connected battery
  • High resistance to mains disturbances
  • Galvanic separated mains - output
  • High stability of output parameters
  • Possibility to set up custom charging curves
  • Memory for charging cycles
  • Regeneration charging – desulphation and equalization
  • Possibility to use one charger for more different batteries by manual selection
  • Very high reliability
  • Short circuit proof output
  • Saves expenses for operating
  • Modular system
  • Preset charging



Specification

Efficiency :
up to 95%
Output voltage stability :
+-1%
Cooling :
active fans
Degree of protection :
IP20
Operating temperature :
-10°C to +40°C
Safety class :
1
Standards :
EN 61000-6-2, EN 61000-6-4, EN 60950-1

Dimensions

Case Width Height Depth X Y

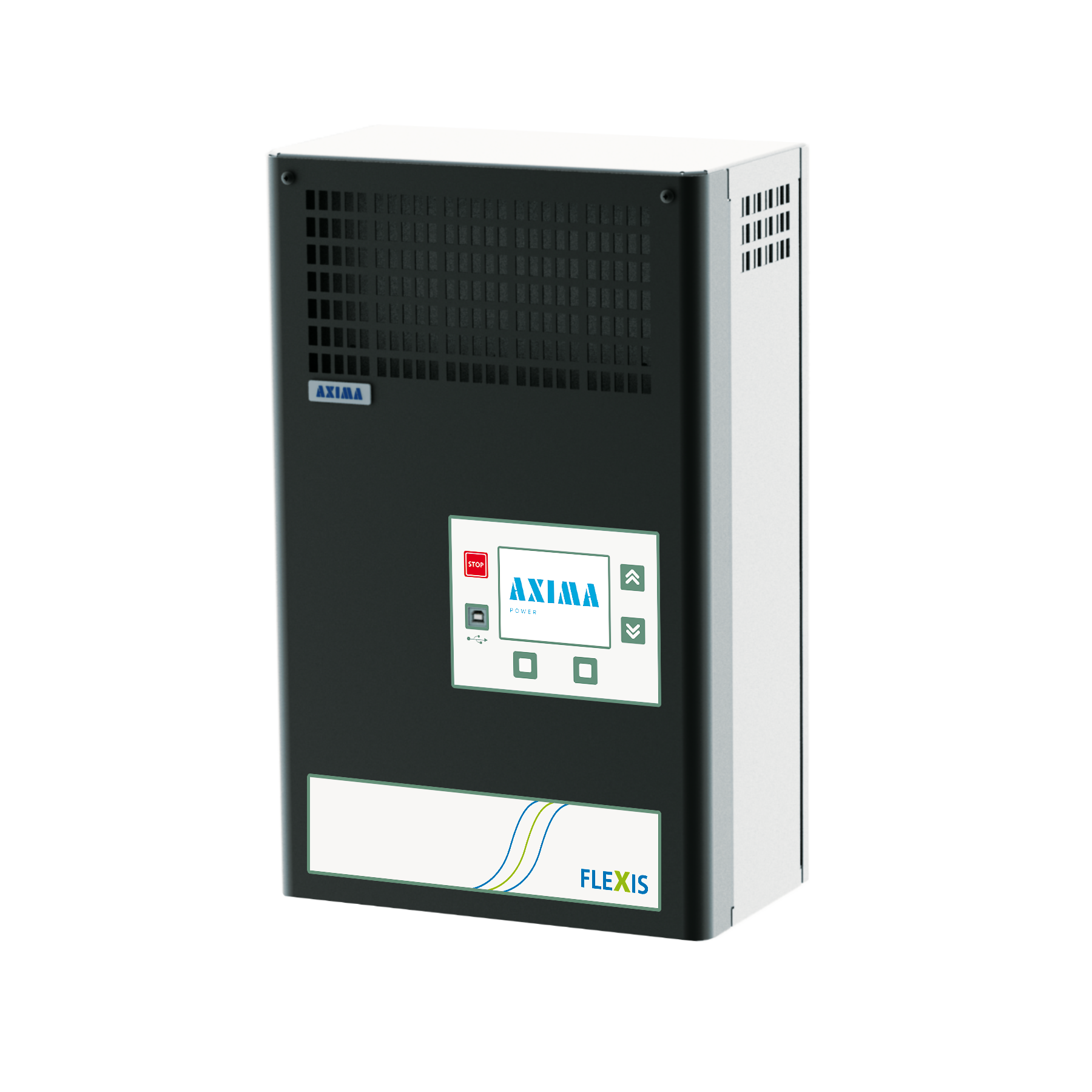

FF170 302 477 169 230 515
FF250 302 477 254 230 515

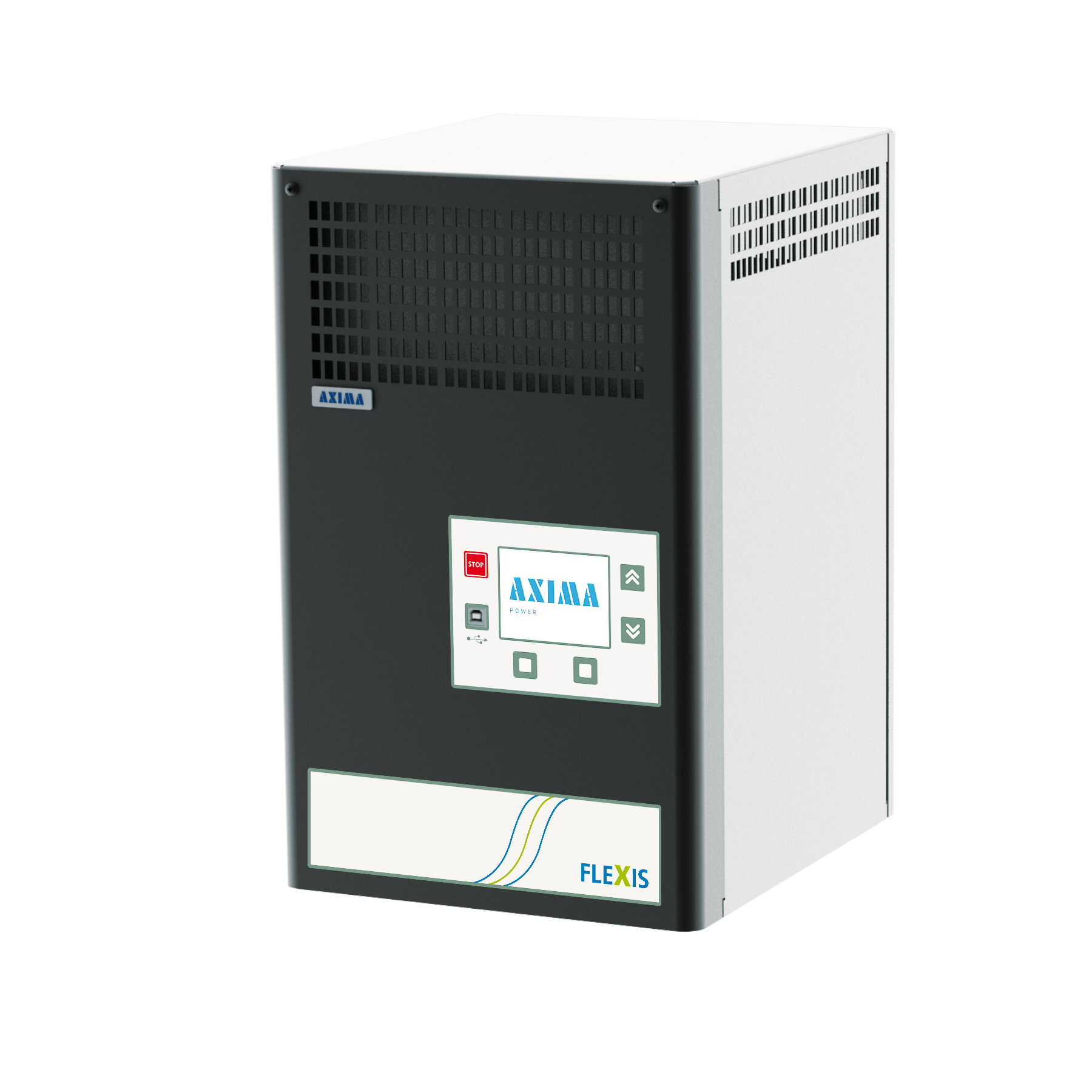

FF330 302 477 339 230 515

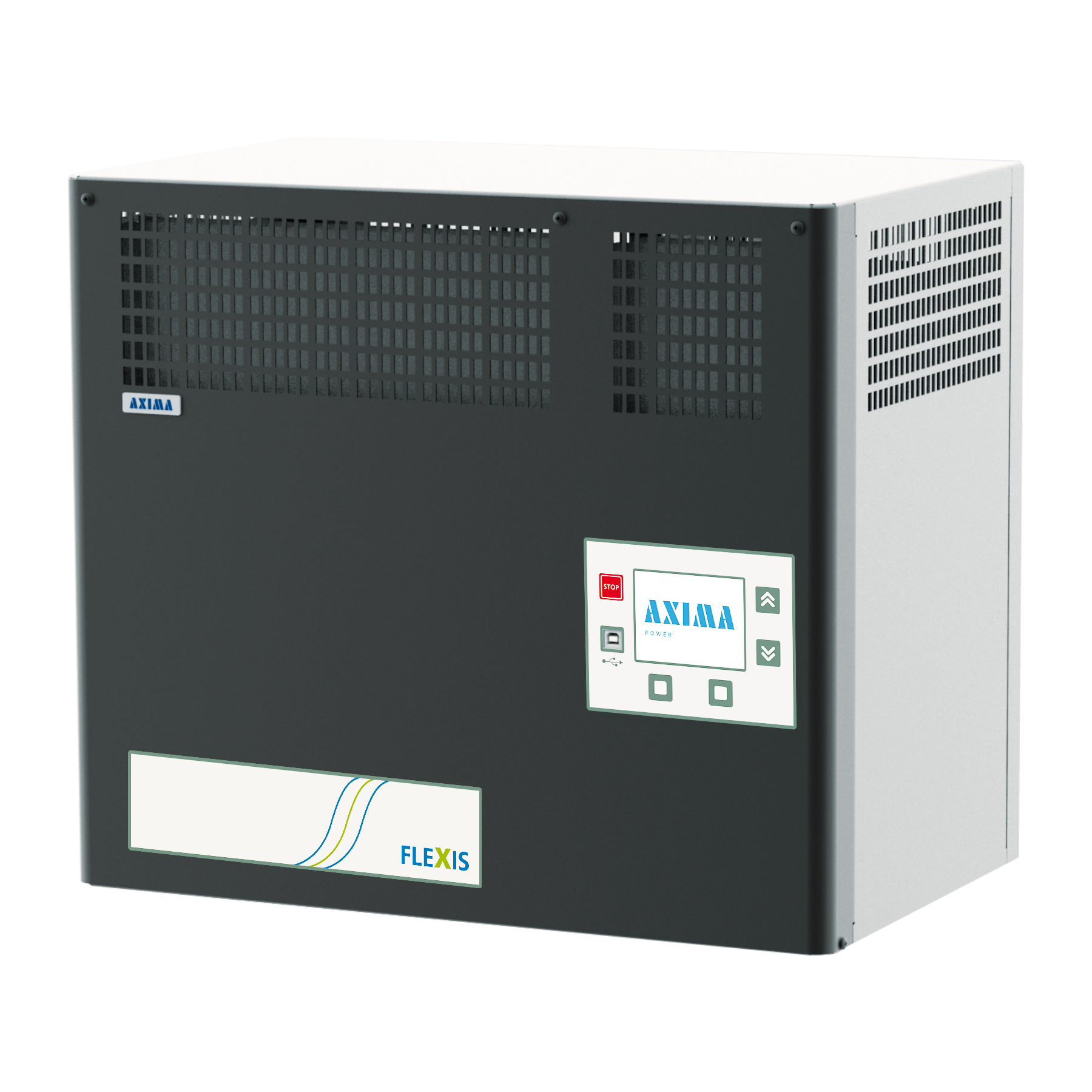

FF550 547 477 339 499 515

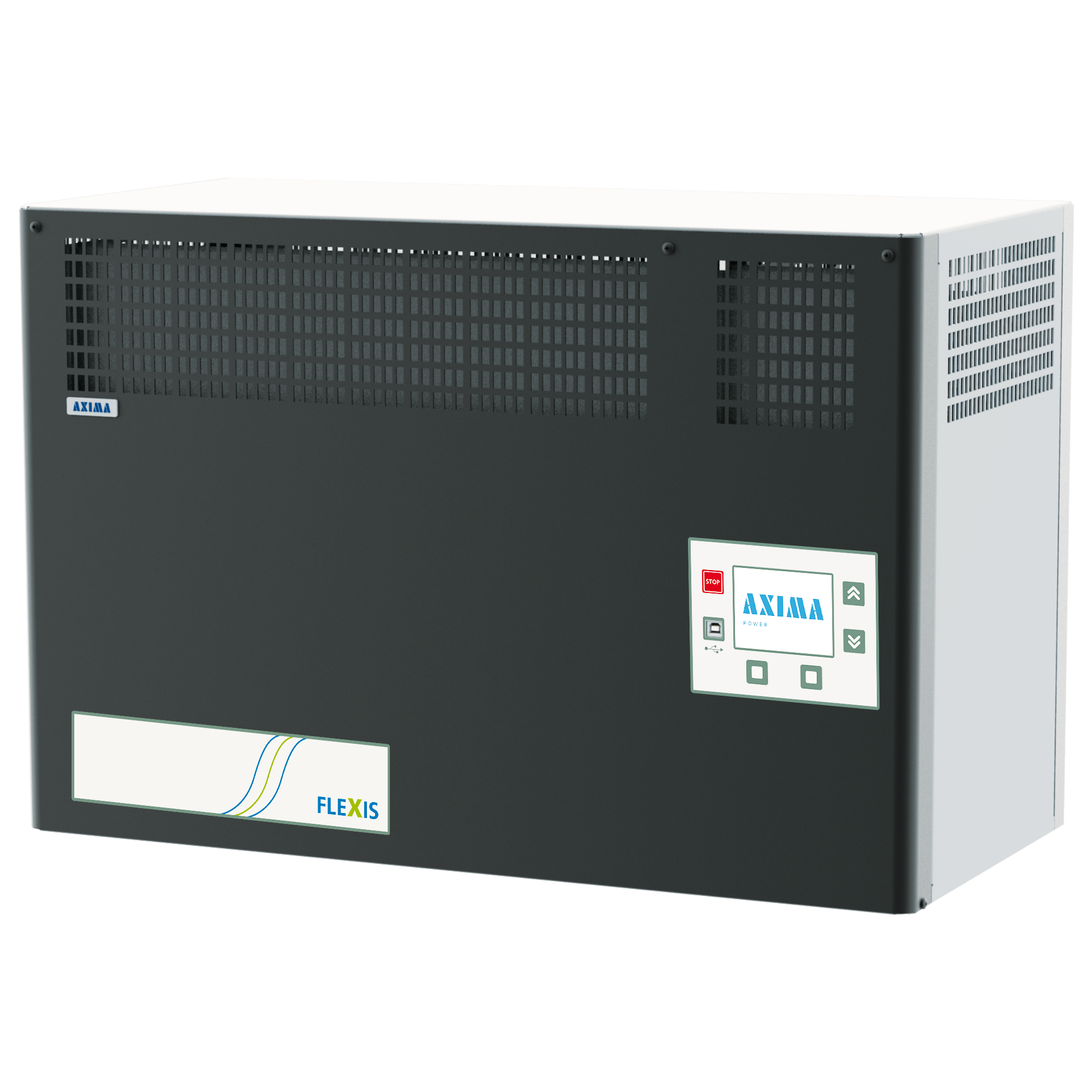

FF720 717 477 339 669 515
Pokud tabulku nevidíte celou, mužete s ní pohybovat doleva/doprava
Dimensions in milimetres [mm] X and Y are positions of mounting holes
case_dimensions

Accessories

AXI FF WATERFILL24
AXI FF WATERFILL24 is for refilling demi water to lead-acid batteries.  FLEXIS charger controls the AXI FF…
Detailed specification
FLEXIS EUW2+
Extension board for the control system and air pump for FLEXIS chargers. The air pump ensures the circulation of the…
Detailed specification
FLEXIS EUW2
Extension board for the control system and air pump for FLEXIS chargers. The air pump ensures the circulation of the…
Detailed specification
FLEXIS EUW1
Extension board for the control system and air pump for FLEXIS chargers. The air pump ensures the circulation of the…
Detailed specification
FLEXIS EXT UNIT RS
Extension board for FLEXIS control unit. Allows connection to external accessories.
Detailed specification
FLEXIS EXT UNIT BM
Extension board for FLEXIS control unit. Allows connection to external accessories.
Detailed specification
FLEXIS EXT UNIT
Extension board for FLEXIS control unit. Allows connection to external accessories.
Detailed specification
AXI FF STARTSTOP
External START and STOP buttons.
Detailed specification
AXI FF RAMI R/G
External signalization for on-board mounting.  red / green
Detailed specification
AXI FF SEN20DM
Senzor pro měření teploty baterie s kabelem délky 2,0m.
Detailed specification
AXI FF SEN37DM
Senzor pro měření teploty baterie s kabelem délky 3,7m.
Detailed specification
AXIM983x
Battery identification module with temperature sensor and electrolyte level sensor.
Detailed specification
AXIM982x
Battery identification module with temperature sensor.
Detailed specification
AXIM981x
Battery identification module.
Detailed specification
AXI FF 3LED
Modular signaling column WERMA with three parts, green, yellow and red. Optical signaling located on the top of the…
Detailed specification
AXI FF 2LED
Modular signaling column WERMA with two parts, green and red. Optical signaling located on the top of the charger…
Detailed specification
AXI FF CAGE
Stand with wheels for easy handling. Particularly suitable for service chargers.
Detailed specification
AXI FF 720 ROBUST
High stand for hanging the charger.
Detailed specification
AXI FF 550 ROBUST
High stand for hanging the charger.
Detailed specification
AXI FF 330 ROBUST
High stand for hanging the charger.
Detailed specification
AXI FF MONO300
AXI FF MONO300 stand for chargers. It is used with FF330, FF550 and FF720 cases.
Detailed specification
AXI FF MONO200
AXI FF MONO 200 stand for chargers. It is used with FF170 and FF250 cases.
Detailed specification
AXI FF 1LED
Modular signaling column WERMA with one part, green. Optical signaling located on the top of the charger provides a…
Detailed specification
