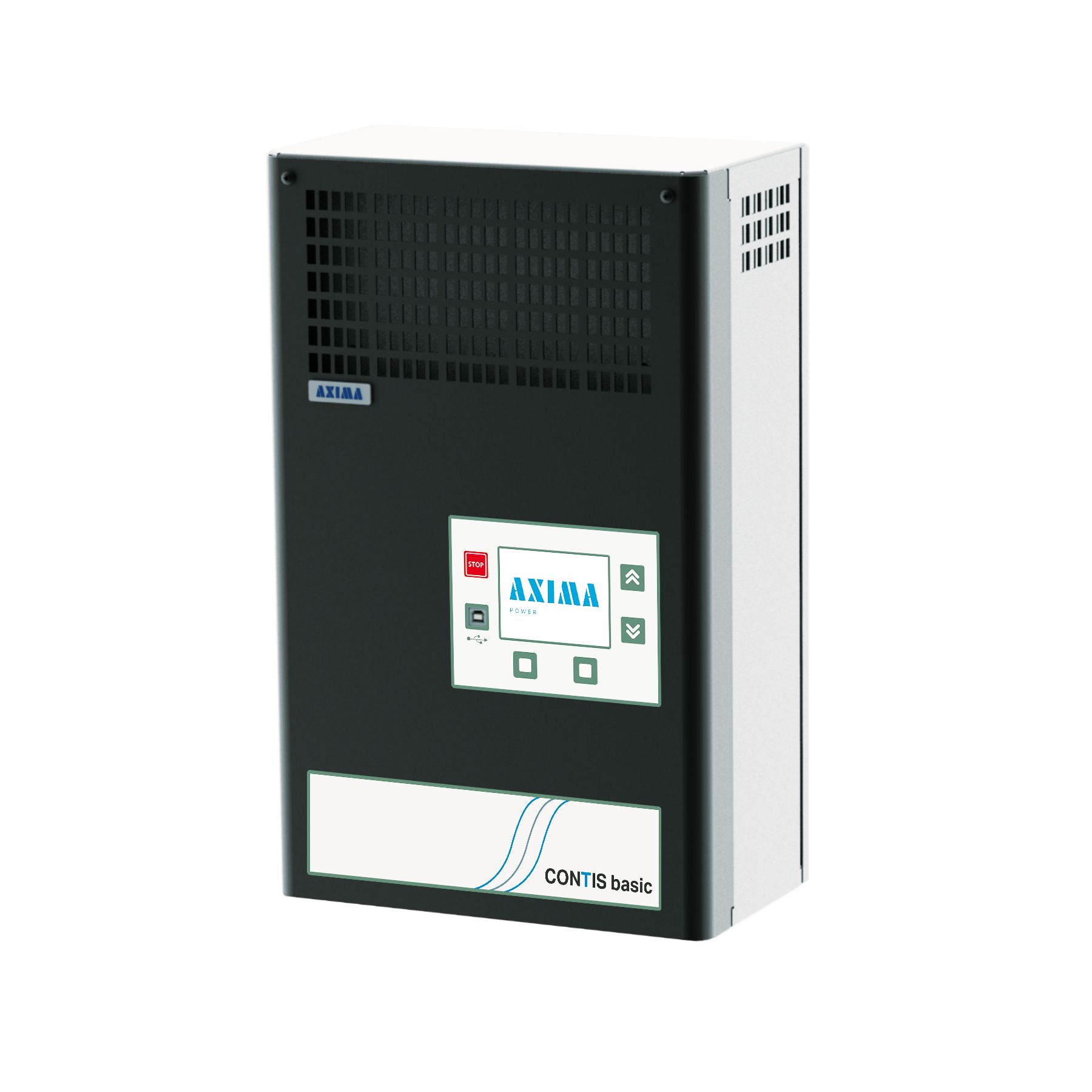

CONTIS BASIC

DC power supply for back-up power systems. Used to charge stationary batteries for backup power supplies or to power onboard systems

Product description

Features

  • Option to set for 12 - 220V battery according to type
  • Output voltage range 1 - 225A according to type
  • IU0U or IU charging curves according to DIN 41 772
  • Efficiency up to 94%
  • Temperature compensation
  • Short circuit proof output
  • Regeneration mode

CONTIS basic chargers are intended for industrial applications, mainly for charging and maintaining of station batteries in a charged state, DC power supply and back-up of technology systems.CONTIS basic chargers are reliable, powerful and easy to use. They are suitable even for different types of batteries.

Benefits

  • High power factor (PFC) and softstart
  • Galvanic separation mains – output
  • High stability and excellent dynamic behaviour of output parameters
  • Small ripple of output voltage
  • Operates with or without battery
  • Possibility of external equipment (optional)
  • High resistance to mains disturbances
  • Flexible modular system

Types and dimensions

Charger type
Battery voltage Unom (VDC
Output current (A) Charger voltage Umax (VDC) Input voltage (V) Input current (A) Mains protection (A) Case (IP20) Weight (kg)
CONTIS basic 24E60 12, 24 60 35 230 8,7 10 FF170 16
CONTIS basic 24E100 100 14,1 16 FF170 16
CONTIS basic 24D100 100 3x400 4,9 6 FF170 17
CONTIS basic 24D200 200 9,8 10 FF250 25
CONTIS basic 48E50 48 50 70 230 14,1 16 FF170 16
CONTIS basic 48D50 50 3x400 4,9 6 FF170 17
CONTIS basic 48D100 100 8 10 FF170 20
CONTIS basic 48D150 150 12,9 16 FF250 28
CONTIS basic 48D200 200 16,0 20 FF250 30
CONTIS basic 80E25 60 110 25 24 140 230 14,1 16 FF170 16
CONTIS basic 80D25 25 24 3x400 4,9 6 FF170 17
CONTIS basic 80D50 50 40 8,0 10 FF170 20
CONTIS basic 80D75 75 65 12,9 16 FF250 28
CONTIS basic 80D100 100 80 16,0 20 FF250 30
CONTIS basic 80D125 125 100 20,9 25 FF330 39
CONTIS basic 80D150 150 120 24,0 32 FF330 40
CONTIS basic 80D175 175 140 28,9 32 FF550 49
CONTIS basic 80D200 200 160 32,0 40 FF550 52
CONTIS basic 80D225 225 180 36,9 40 FF720 63
CONTIS basic 80D250 250 200 40,0 63 FF720 63
CONTIS basic 220D24 220 22 300 3x400 8,0 10 FF170 20
CONTIS basic 220D48 44 16,0 20 FF250 30
CONTIS basic 220D72 66 24,0 32 FF330 41
CONTIS basic 220D96 88 32,0 40 FF550 55
CONTIS basic 220D120 110 40,0 63 FF720 63
CONTIS basic 220D144 132 48,0 63 FF720 63
CONTIS basic 400D12 400 12 600 3x400 8,0 10 FF170 20
CONTIS basic 400D24 24 16,0 20 FF250 30
CONTIS basic 400D36 36 24,0 32 FF330 41
CONTIS basic 400D48 48 32,0 40 FF550 55
CONTIS basic 400D60 60 40,0 63 FF720 63
CONTIS basic 400D72 72 48,0 63 FF720 63



In case you did not choose from standard products, please contact us.



Efficiency up to 94%
Output voltage stability ± 1%
Cooling forced ventilation
Protection degree IP20
Operating temperature from -10°C to +40°C
Protection class I
Standards

EN 61000-6-2
EN 61000-6-4
EN 62368-1















CASE Dimensions (mm) Mounting holes spacing (mm)
Height Width Depth X Y
FF170 477 302 169 230 515
FF250 477 302 254 230 515
FF330 477 302 339 230 515
FF550 477 547 339 499 515
FF720 477 717 339 669 515



dimensions



Accessories

AXI FF SEN20DM
Temperature sensor for lead-acid batteries with 2.0 m cable.
Detailed specification
AXI FF SEN37DM
Temperature sensor for lead-acid batteries with 3.7 m cable.
Detailed specification
AXI FF 3LED
Modular signaling column WERMA with three parts, green, yellow and red. Optical signaling located on the top of the…
Detailed specification
AXI FF 2LED
Modular signaling column WERMA with two parts, green and red. Optical signaling located on the top of the charger…
Detailed specification
AXI FF MONO300
AXI FF MONO300 stand for chargers. It is used with FF330, FF550 and FF720 cases.
Detailed specification
AXI FF MONO200
AXI FF MONO 200 stand for chargers. It is used with FF170 and FF250 cases.
Detailed specification
AXI FF 1LED
Modular signaling column WERMA with one part, green. Optical signaling located on the top of the charger provides a…
Detailed specification
